Precision Laser Processing Capability Sheet
At FP Stencil, we specialize in ultra-high precision metal fabrication, leveraging cutting-edge laser processing technology and advanced inspection systems. Our capabilities extend from fine micro-features to robust structural components, providing industry-leading solutions in the fabrication of SMT stencils, precision parts, and more.
Core Equipment
Tanlinn Laser System
Ultra-Precision Platform for Micro-Features
Our Tanlinn Laser System is designed for applications requiring the highest level of accuracy and repeatability. Optimized for thin metal fabrication, this system delivers unparalleled precision, making it ideal for SMT stencils, fine apertures, and micro-features.
- Thickness Range: 0.02 mm – 0.30 mm
- Feature Repeatability (Local): ±2 µm
- Global Positional Accuracy: ±5 µm
- Material Capability: Stainless Steel & Nickel Blank
- Key Applications:
- SMT Stencils
- Micro-Features & Fine Apertures
- Precision Laser Cut Components
The Tanlinn system is perfect for industries where fine precision and tight tolerances are a necessity, from semiconductor production to high-precision electronics.

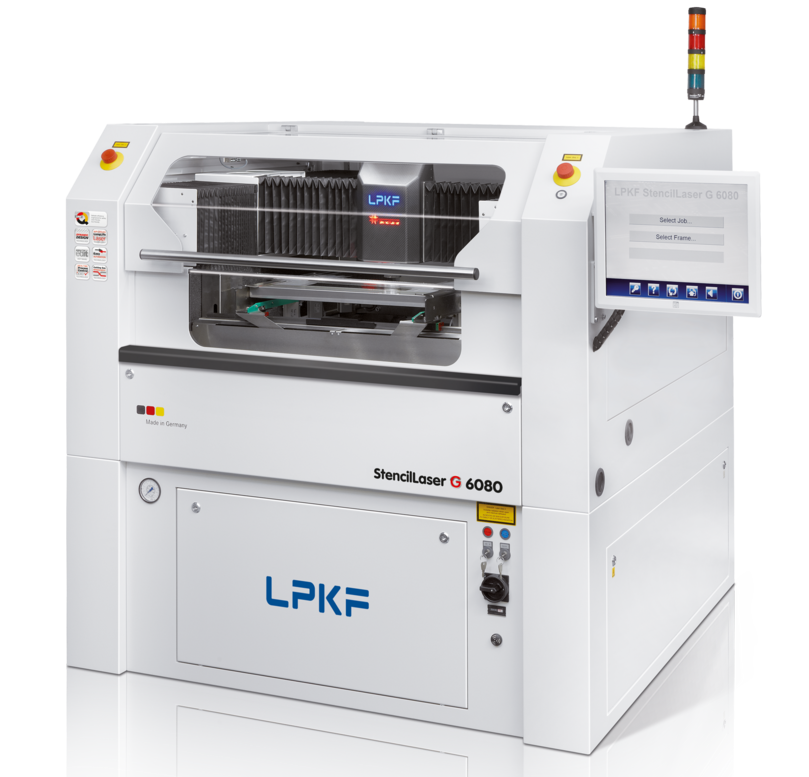

LPKF Laser System
Extended Range Platform for Robust Precision Components
The LPKF Laser System is engineered to handle a broader range of materials and thicker components, allowing us to support a wider array of applications, including structural parts and extended thickness materials.
- Thickness Range: 0.08 mm – 4.0 mm
- Axis Positioning Accuracy: ±2 µm
- Material Capability:
- Stainless Steel
- Nickel Blank
- Aluminium
- Titanium
- Invar
- Copper
- Cobalt Alloy
- And more…
- Key Applications:
- Structural Components
- Precision Parts for Aerospace & Automotive
- High-Performance Materials Processing
With unmatched versatility, the LPKF system excels in applications requiring precision in thicker, more demanding materials, such as titanium and cobalt alloys, making it ideal for industries like aerospace, automotive, and industrial equipment manufacturing.
Why Choose Us?
- Ultra-Precision Manufacturing: Our technology ensures that every part meets tight tolerance specifications for even the most demanding applications.
- Versatility Across Materials: We offer a wide range of materials, ensuring that your project gets the right solution for its specific needs.
- Unmatched Quality Control: Our inspection systems guarantee the highest standard of precision, giving you peace of mind that every component is made to perfection.
- End-to-End Solutions: From design to production, our systems are integrated to provide a seamless experience and fast turnaround times.
